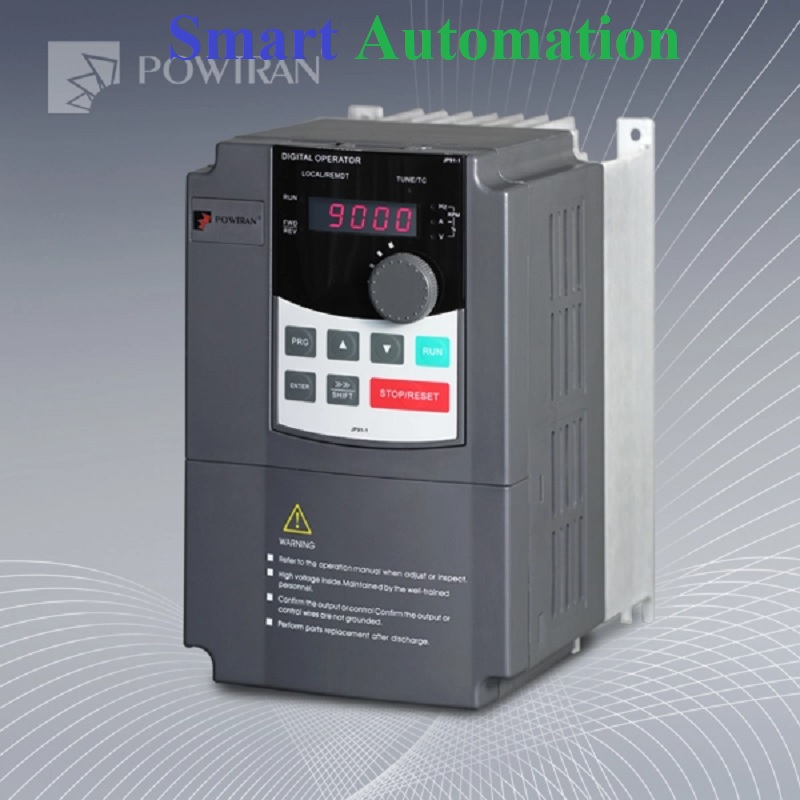

VFD In Sri Lanka, POWTRAN PI9000 Series. LKR 42750/=
VFD in Sri Lanka. POWTRAN PI9000 Series high-performance Vector control with PG (VC), senseless vector control (SVC), V/F control internal current loop to realize high precision of close loop, With reasonable price. Input voltage 400VAC 3Phase. Output 0 - 400VAC 3Phase.
Availbel Model :
PI9130 Series.
| Model : | Capacity: | Price : | Status | |
|---|---|---|---|---|
| PI9130 1R5G3 400V | 1.5KW / 2hp / 3.8A | LKR 42750/= | In Stock | |
- Input 400VAC 50/60Hz
- Output 0-400VAC, 0-400Hz
- Integrate V/F control
- Vector control with PG
- Senseless vector control (SVC)
- Overload capacity: 150% rated current for 60 s (SVC)
- Internal PID function
Click here for PI9000 Manual »
Description:
Inverter price in sri lanka. POWTRAN PI9000 series high-performance inverter is based on the Dalian POWTRAN Technology company's many years of design, production, sales experience, suitable for all kinds of industrial machinery, fan & water pump drive control and heavy industry such as medium frequency grinding. Products in duct design, hardware configuration, software functions, installation design has greatly improved the customer ease of use and environmental adaptability, function optimization, application is more flexible, more stable performance, greatly improve the product reliability.
POWTRA PI9000 ශ්රේණියේ VFD Dalian POWTRAN Technology සමාගමේ වසර ගණනාවක සැලසුම්, නිෂ්පාදනය, විකුණුම් අත්දැකීම් මත සියලු වර්ගවල කාර්මික යන්ත්රෝපකරණ සඳහා සුදුසු පරිදි නිමවා ඇත. යන්ත්රෝපකරණ විදුලි පංකා සහ ජල පොම්ප වේග පාලනය සහ මධ්යම සංඛ්යාත ඇඹරීම වැනි බර කර්මාන්ත සදහා වඩාත් යෝග්යවේ. සැලසුම් කිරීම, දෘඩාංග වින්යාසය, මෘදුකාංග ක්රියාකාරිත්වය, ස්ථාපන සැලසුම වැනි දෑ පාරිභෝගිකයින්ගේ භාවිතයේ පහසු පරිදි සකසා ඇත
Technical Features
- High voltage variable frequency drive Power range: 0.75~11KW.
- High voltage variable frequency drive Voltage: 3AC 220~415V -15%~15%.
- High voltage variable frequency drive Output frequency: 0.00 ~ 800.00Hz.
- Central control module based on DSP, realizes high-speed and high performance control.
- Integrate V/F control, V/F+PG control, vector+PG control.
- 3 space voltage vector waveform produce methods.
- Our product high voltage variable frequency drive Dead compensate function, realize low frequency and large output torque control.
- Automatic slip compensate.
- At most 7 steps speed control and 8 steps acceleration control can be realized.
- 6 programmable output control terminals.
- Internal PID function, realize high performance closed loop control.
- PID regulate DC braking
- Forced communicated function ,support standard RS485 and Can Bus,supply remote keyboard control function.
- High voltage variable frequency driveSpecial converse module (IGBT) temperature control function,adjustable fan control,timely reduce motor noise and temperature.
- High-efficient faults inquiry and record function ,conveniently obviate the fault.
- AC variable speed drives parameter protection function
- Unique design,make frequency converter least pollution to the power.
- AC variable speed drives Outstanding behave 3-phase AC synchronous motor of permanent magnetism control.
- AC variable speed drives control mode: Vector control with PG (VC), senseless vector control (SVC), V/F control.
- Overload capacity: 150% rated current for 60 s (SVC), 180% rated current for 10 s (VC).
- Multi-functional Quick/Jog key: Access common used parameter quickly.
- Ambient temperature: -10~40 degree.
- Altitude: 0~1000 m, 1000~4000 m with derating.
- 30 kinds of protection function of our High voltage variable frequency drive.
- User can plug in option card to achieve specialized inverter for different application.
- Avoid high temperature and moisture and avoid being wetted due to raining, with the humidity below 90%RH (not dewing).
