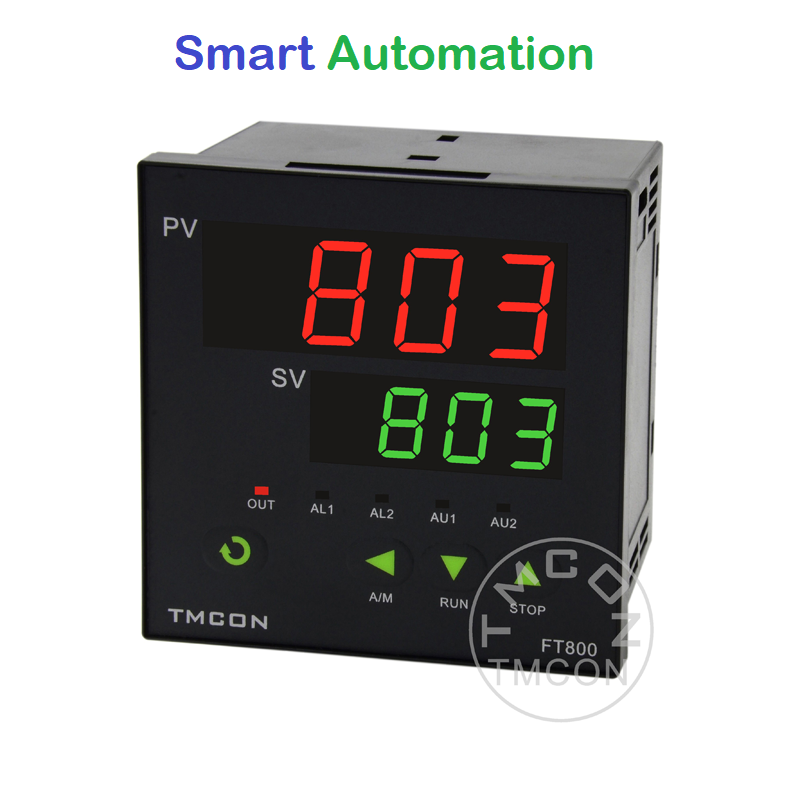

TEMPERATURE CONTROLLER TMCON FT-803 Digital PID Rs. 4850/=
Temperature Controller in Sri Lanka. TMCON FT-803 Series economical intelligent digital PID temperature controller with 01 year warranty. Input thermocouples type K,E,J,N and Pt100 freely programmable.
Availbel Model :
| Model : | Description : W x H | Price : | Status |
|---|---|---|---|
| FT803-AR2-B | Size 96x96, Relay out | 5150/= | In Stock |
| FT803-DR2-B | Size 72x72, Relay out | 4850/= | In Stock |
| FT803-ER2-B | Size 48x96, Relay out | 4850/= | In Stock |
| FT803-FR2-B | Size 96x48, Relay out | 4850/= | In Stock |
| FT803-GR2-B | Size 48x48, Relay out | 4850/= | In Stock |
| FT803-AQ2-B | Size 96x96, SSR out | 5150/= | In Stock |
| FT803-DQ2-B | Size 72x72, SSR out | 4850/= | In Stock |
| FT803-EQ2-B | Size 48x96, SSR out | 4850/= | In Stock |
| FT803-FQ2-B | Size 96x48, SSR out | 4850/= | In Stock |
| FT803-GQ2-B | Size 48x48, SSR out | 4850/= | In Stock |
BUY ONLINE »
Click here for FT803 Manual »
Description:
- Supply Voltage 100-230VAC/DC
- Input Type K,E,J,N,PT100
- Alarm out 2 Relay
- Programmable multiple alarm mode
- Intelligent digital PID controller
- TMCON FT803 economical intelligent digital PID temperature controller Easy to operate, priceeconomy,very popular
- Designed for plastics, food, packaging, oven, scientific experiments and other heating equipment design
- Use digital calibration technology for input Measurement accuracy:0.3%FS,maximum resolution is 0.1
- Input type thermocouples(K,E,J,N) and platinum resistance(Pt100) freely programmable
- Use advanced artificial intelligent control algorithm, no overshoot and with the function of auto tuning (AT) and self-adaptation
- Programmable multiple alarm mode:High alarm, Lower alarm, High-lower alarm and deviation alarm
- With worldwide power supply of AC/DC100-240V or AC/DC12-24V and various installation dimensions for users to choose
